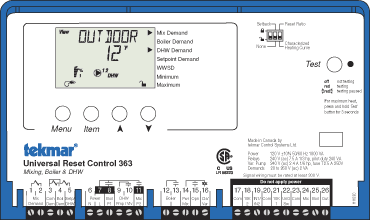

TEKMAR 363 UNIVERSAL RESET CONTROL - MIXING BOILER & DHW

The Tekmar 363 has been discontinued and replaced by the Tekmar 374. The Tekamr 363 Universal Reset Control is a microprocessor based control designed to maximize the comfort and efficiency provided by a hydronic heating system. The control automatically adjusts the boiler and mixed loop water temperatures that are delivered to the heating system by using outdoor reset. For a mixing device the Tekmar 363 can use a variable speed driven wet-rotor circulator or a floating action driven mixing valve. The Tekmar 363 control includes a large Liquid Crystal Display LCD in order to view system status and operating information. Several energy saving features have been incorporated into the Tekmar 363 such as Warm Weather Shut Down WWSD - DHW post purge - system setback - DHW priority - Morning Boost - Soft Start and an automatic differential for boiler control. The Tekmar 363 also has a unique feature that allows the control to supply heat to the mixed system from either the boiler or a thermal storage tank heated by solar panels.
